Water filtration is the process of removing contaminants to make water safe to use and drink. It is one part of water purification, along with other steps to improve water quality for people and homes. Water filtration uses physical and chemical methods to remove particles, germs like bacteria, viruses, and protozoa, as well as other harmful substances from raw water sources like rivers, lakes, and groundwater.
In a typical water treatment system, water first goes through a series of steps before filtration. These steps help prepare water so that filters work better and last longer. After filtration, water usually moves on to disinfection so any remaining germs are killed before water reaches your tap.
Water filtration can occur on a large scale at a city or municipal plant or on a small scale in your home with systems such as activated carbon filters, ultrafiltration membranes, or reverse osmosis units. All these methods help reduce particle levels and improve water quality, making it safer, cleaner, and tastier.

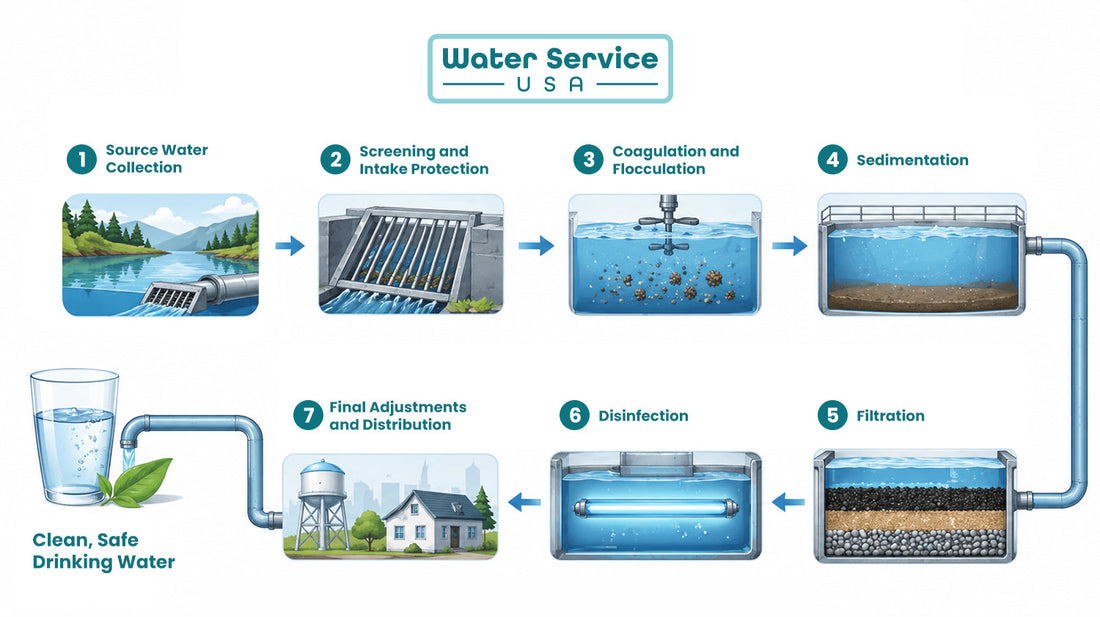

Step-by-Step Breakdown of Water Filtration Processes
Water filtration is one of the main steps in making safe drinking water from raw water sourced from nature. Most water treatment plants follow a set of clear steps to remove bad things like dirt, suspended solids, bacteria, and other harmful matter before the water goes to your home. These steps work as a treatment train, where each part prepares water for the next, so filters can work well.
1. Source Water Collection
The first step is to collect raw water from a water body, such as a river, lake, or reservoir. This water may contain many unwanted materials, including particles, chemicals, and tiny living things. Once water is collected, it proceeds to the next purification step.
2. Screening and Intake Protection
Before filtration begins, water passes through a screening stage. This step removes large objects such as leaves, sticks, or trash that could damage equipment. Screens help protect the system so that later steps, such as filtration and coagulation, can work without clogging.
3. Coagulation and Flocculation
In this step, small particles too small to settle on their own are pushed to join together. Workers add safe chemicals called coagulants to water. These help very small bits stick together into bigger clumps called floc. These bigger clumps are easier to remove in later steps.
4. Sedimentation
After floc forms, the water is directed to a calm tank, where the heavier floc gradually settles to the bottom by gravity. This process is called sedimentation. The settled material settles to the bottom, and the clearer water moves to the next step.
5. Filtration
Now water is ready for filtration. Here, water flows through filters made of sand, gravel, or activated carbon. These filters trap smaller particles and many types of microorganisms that remain after sedimentation. Some systems also use ultrafiltration membranes or reverse osmosis to catch even tinier particles or dissolved solids.
6. Disinfection
Even after filtration, some germs may remain. The disinfection step kills these tiny living things, so the water will be safe to drink. Plants may use chlorine, chloramine, ozone, or UV light to do this. Disinfection also helps protect water as it travels through pipes to your home.
7. Final Adjustments and Distribution
After disinfection, water may undergo pH adjustment to reduce its corrosiveness to pipes and may receive a residual disinfectant to prevent germs from growing in the distribution network. Then clean water is sent out to homes, businesses, and schools.
Each of these steps is important in the water purification process so that water meets safety and quality standards before it reaches people.
Common Filtration Technologies Explained
In water treatment, various filtration technologies remove dirt, germs, and harmful chemicals, making water safe to drink. These technologies are used in large municipal water treatment systems and in smaller household filters to make sure water is clean and tastes good.
Sand Filters
Sand filters use layers of sand and gravel to catch particles as water slowly moves through them. These filters are common in many water treatment plants. There are rapid sand filters and slow sand filters that clean water at different speeds. Slow sand filters can also remove many germs and improve taste and smell without the need for extra chemicals.
Activated Carbon Filters
Activated carbon filters use carbon with very small pores to trap and hold pollutants such as odors, chlorine, organic chemicals, and some heavy metals. The large surface area of the carbon makes it good at adsorption, where contaminants stick to the filter. These filters help improve water taste and quality.
Membrane Filtration (Ultrafiltration & Reverse Osmosis)
Membrane filtration uses thin sheets with small holes to block contaminants.
- Ultrafiltration uses tiny pores that capture particles, bacteria, and some viruses while allowing water to pass through.
-
Reverse osmosis pushes water through a special membrane, removing many dissolved solids and very small contaminants.
These methods are very good for high-quality water purification and are often used when water has more pollutants or in point-of-use systems.
Mechanical Filtration
Mechanical filtration uses physical barriers, such as meshes or screens, to remove dirt, suspended solids, and larger particles before other processes further clean the water. This type of filtration can protect other technologies and improve their performance.
UV and Other Disinfection-Related Filtration
While not always a filter in the strict sense, UV light and ozone are used together with filtration to inactivate bacteria, viruses, and other microbes so water that has passed through filters stays biologically safe.
Combined Technology Systems
Some systems mix multiple filtration types, such as activated carbon, ultrafiltration membranes, and reverse osmosis, to remove a wide range of contaminants and meet strict safety standards. These combinations make water very clean for drinking and cooking.
Each of these technologies plays a role in removing different contaminants, ensuring water is safe, clean, and tastes good for people everywhere.
Why Multiple Stages Matter
Multiple stages in water filtration processes are important because each step helps remove different types of contaminants and protect water quality from the source to the tap. Water treatment is not just one simple action. It uses multiple layers of protection to ensure people get safe, clean water that meets health standards.
In a typical multi-barrier approach, water undergoes several sequential steps, such as screening, coagulation and flocculation, sedimentation, filtration, and disinfection. Each stage prepares water for the next, ensuring that particles, suspended solids, chemicals, and microbes are removed reliably.
The idea behind multiple stages is simple: no single filter or treatment step can remove all contaminants on its own. For example, a filter may catch particles but does not kill all bacteria or viruses. Having more than one step provides water treatment systems with redundancy and safety, so if one process misses something, the next can remove it. This layered protection helps protect public health and reduce contamination-related risks.
Another benefit of using multiple stages is that each step makes later steps more effective. When large particles and debris are removed early, filters work better and last longer. When water is clarified and clearer before disinfection, methods like UV light or chlorine can work more efficiently. This coordinated system of steps is a core principle of modern safe water treatment.
In short, multiple stages matter because they give water treatment systems the strength and depth they need to remove a wide range of impurities, protect infrastructure, and keep drinking water safe and reliable for everyone.
Common Contaminants Removed at Each Step
In a water filtration process, each step helps remove different contaminants, making the water safe and clean to drink. Water treatment works like a chain of actions that together target physical, chemical, and biological impurities in raw water before it reaches our taps.
Coagulation and Flocculation Remove Small Particles
In the coagulation and flocculation step, chemicals are added to bind tiny particles that cause turbidity and cloud the water. These particles include dirt, tiny clay bits, and suspended solids. The chemicals help these bits form larger clumps called floc, which are easier to remove later.
Sedimentation Removes Heavy Solids
During sedimentation, gravity pulls the heavier floc down to the bottom of a tank. This stage removes a large amount of solid material, reducing the filter load. It mainly targets suspended solids and other heavy particle contaminants.
Filtration Removes Microscopic Particles and Organisms
The filtration stage uses media such as sand, gravel, or activated carbon to remove many remaining particles that did not settle during sedimentation. Filtration removes fine dirt, some remaining floc, bacteria, viruses, and small organic matter. Depending on the media (such as ultrafiltration membranes or reverse osmosis), filters can also remove dissolved chemicals, heavy metals, and even very small living organisms.
Disinfection Removes Harmful Microbes
Disinfection uses methods such as chlorination, UV light, or ozone to kill or neutralize harmful microorganisms that survived filtration. This step is key for removing bacteria, viruses, and protozoa, ensuring water is safe to drink and safe as it travels through pipes to your home.
Final Adjustments Target Specific Contaminants
After core treatment, some systems adjust pH or add residual disinfectants to keep water stable and free of microbial regrowth. Advanced technologies, such as ion exchange, can also remove specific dissolved contaminants, such as nitrate or certain metal ions, if needed.
Together, these stages ensure that the water treatment process removes common and harmful contaminants, such as dirt, turbidity, bacteria, viruses, parasites, heavy metals, organic chemicals, and other impurities, from raw water, so that the water meets health and safety standards.
Challenges and Innovations in Water Filtration
Water filtration plays a vital role in making clean, safe drinking water from raw water. However, the science and engineering behind water treatment face many challenges while also driving new innovations to improve filtration.
Challenges in Water Filtration
Even with modern steps like coagulation, sedimentation, filtration, and disinfection, water treatment systems still struggle with some problems:
- Emerging contaminants such as microplastics, pharmaceuticals, and other tiny pollutants are hard to remove with traditional methods.
- Membrane technologies like reverse osmosis and nanofiltration can be very effective, but they often have high costs and require more energy to operate than simpler filters.
- Membrane fouling—where tiny particles and biofilms clog filters—reduces efficiency and increases maintenance needs.
- Financial and technological constraints can make it hard for small or rural communities to install advanced systems that work like large municipal water treatment plants.
Understanding these challenges helps engineers design better filters and treatment steps so water stays safe for everyone.
Innovations Improving Filtration and Purification
To meet these challenges, scientists and companies are creating new methods and materials that make water treatment more effective and affordable:
- Nanotechnology filters and smarter membranes can remove very tiny particles with better precision and fewer resources.
- Solar-powered and energy-efficient systems help bring clean water to areas without reliable electricity.
- Advanced oxidation processes use combinations of light and chemicals to break down tough organic pollutants that regular filters can miss.
- Smart monitoring with sensors and automated controls can monitor water quality in real time and quickly adjust treatment steps.
- Researchers are exploring eco-friendly natural coagulants and bio-based methods to make filtration safer and more sustainable.
These innovations help address new forms of water contamination and make treatment systems more efficient and sustainable as water demand grows.
Overall, addressing water treatment challenges drives progress in filtration technology, ensuring cleaner, safer water worldwide.
FAQs (Frequently Asked Questions)
Q1. What do water filtration steps actually remove?
Each step in a water filtration process removes different kinds of contaminants. Early stages like coagulation and flocculation help clump tiny particles so they can be removed. Sedimentation lets heavier particles settle by gravity. Filtration through media such as sand or activated carbon filters catches finer particles and some microorganisms. Finally, disinfection kills harmful germs, such as bacteria and viruses, making the water safe to drink.
Q2. Why is filtration needed if water already goes through other steps?
Filtration is a key part of making water safe. It removes what earlier steps cannot fully catch, such as very small particles, tiny organisms, and dissolved organic matter. Filters like rapid sand filters work with previous stages to produce final water that is clearer and cleaner before disinfection.
Q3. Does filtration remove germs, such as bacteria and viruses?
Yes, filtration removes many kinds of germs. Traditional sand-and-media filters capture many organisms. More advanced filtration, such as ultrafiltration membranes and reverse osmosis, can remove very small particles, including some bacteria and many viruses, making the water safer.
Q4. How is disinfection different from filtration?
Filtration physically removes particles and microbes from water, while disinfection kills or inactivates any remaining microorganisms, like bacteria, viruses, and protozoa, after filtration. This step often uses chlorine, UV light, or ozone to ensure water remains safe as it moves through pipes to your home.
Q5. Can home water filters replace municipal treatment?
Home water filters improve water quality at a point of use or point of entry, but do not replace full municipal water treatment. Municipal systems are designed to meet strict safety standards and handle large volumes of water with multiple stages, including screening, sedimentation, filtration, and disinfection before distribution. Home filters can help reduce taste issues or specific contaminants, but they should be chosen based on the quality of your local water supply.
Q6. How often should water filters be changed?
Filter life varies by type and usage. Activated carbon filters typically need replacement every 6–12 months, but more advanced systems, such as reverse osmosis units, may have multiple parts that change on different schedules. Check the manufacturer’s guidelines and replace filters to keep them working effectively.
Q7. Why do some systems use multiple technologies?
Water treatment uses multiple technologies because no single method removes all contaminants alone. Combining techniques such as activated carbon filters, sand filtration, and membrane technologies ensures a wider range of particles and impurities are removed, protecting water quality and public health.
Q8. Is tap water safe if it meets standards?
Tap water that meets regulatory standards is considered safe to drink. Municipal systems regularly test water quality and adjust treatment steps to meet safety goals. However, local issues like old plumbing or specific contaminants can still affect water quality, so check your local water quality report and use home filters for taste or extra protection.
Q9. What contaminants might still be present after treatment?
While treatment removes most harmful substances, trace amounts of impurities, such as very small organic molecules, certain metals, or chemicals, may remain. Advanced home filtration or specialized technologies are sometimes used to further reduce these.
Q10. What is the difference between filtration and purification?
Filtration refers to the physical removal of particles and microbes, while water purification is a broader term that includes filtration plus other steps such as disinfection, chemical treatment, and sometimes advanced membrane or ion exchange methods to make water safe and suitable for use.
